Plasma Cutting Accessories
City Plasma offer many different CNC cutting machine accessories to improve productivity and efficiency during machining cycles. From tooling stations, scanning and calibration tools, along with marking accessories. There are also pipe cutting, drilling accessories and control systems tools. Please contact us for further information and prices.
5-axis plasma head with infinitive rotation enables bevel cutting of sheets, pipes and profiles with tilting up to 50°.
Tilting tool station enables automatic setting of the torch’s tilt for bevel cutting with plasma in the longitudinal direction (X axis).
A special design with a tilt range of up to 90° is especially useful for cutting domes and steel beams/profiles.

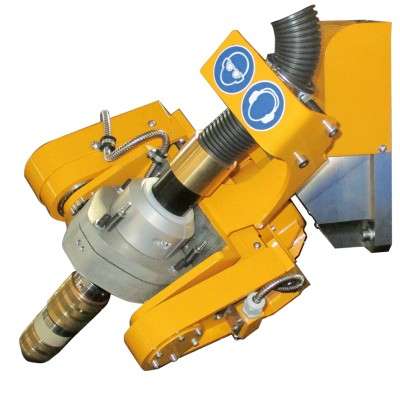

The 3D tilting plasma tool station enables bevel cutting with possibility of tilting up to 50°.
This plasma tool station is used for plasma cutting on our waterjet cutting machine AquaCut.
Marking Accessories
Inkjet writer tool station carries an inkjet writer device. Apart from Y and Z axes, the tool station has a rotary axis for turning orifices of the device around the Z axis, thus enabling marking of lines with different thicknesses and texts of different sizes.
The MicroPunch marking unit is intended for fast and simple marking of parts with different surfaces (tubes, planar parts) and material. The surface can be finished or unfinished.
The laser marking head is capable of marking text, linear and 2D barcodes and lines by burning them into the top layer of marked material.
Drilling Accessories
MicroStep offers variety of drilling and tapping tool stations for several machine types reaching from small drilling heads for soft sandwich materials to big drilling and tapping units with int
MicroStep offers variety of drilling and tapping tool stations for several machine types reaching from small drilling heads for soft sandwich materials to big drilling and tapping units with internal …
Scanning/Calibration Accessories
This camera can be used for two applications: Template scanning or Synchronization with pre-drilled holes.
The Automatic Plate Alignment is a feature of the control system that enables automatic setting of a program starting point and detecting rotation of the plate.
Additional beveling process (ABP) is used for creating Y or K cuts in thicker plates. This process works with a special dedicated scanner (ABP scanner).
This scanner has been specifically designed for scanning of profiles / steel beams for identification of profile edges’ real position.
It has three functions: cleaning of a laser cutting head nozzle, camera for checking status of the nozzle and calibration of a capacitive height sensor.
The in-house developed automatic calibration system for geometry of the cutting tool – ACTG – is designed to eliminate mechanical inaccuracies in the setting of the cutting head and thereby to increase accuracy of bevel cutting by the plasma rotator.
This scanner has been specifically designed for scanning of domes. It can be used with a rotator or 3D tilting tool station on DRM, MG, CombiCut and ProfileCut machines.
Pipe Cutting Accessories
RSV is dedicated for clamping and turning of pipes and profiles. Together with plasma rotator and advanced software modules and libraries from MicroStep it offers the full range of pipe based applications.
RSV is dedicated for clamping and turning of pipes and profiles. Together with plasma rotator and advanced software modules and libraries from MicroStep it offers the full range of pipe based applications.
Oxyfuel Cutting Accessories

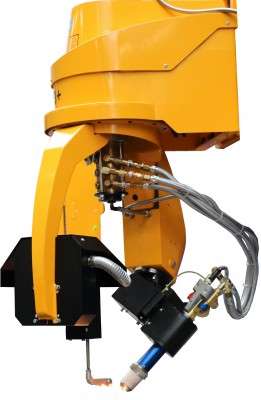

This tool station for oxyfuel bevel cutting with continuous rotation allows contour bevel cutting with no cable “un-wrap” cycle required. It enables cutting of K-, V- and Y-cuts in one go.
This tool station with a fork-type torch is intended for cutting stripes with oxyfuel torches in the width range of 70 – 150 mm.
Technical parametersDegrees of freedom4 (Y, Z, A and B axes) + X on the machineMax. thickness of material100 mm for beveled cuts
Waterjet Cutting Accessories
5-axis waterjet head with 600° rotation enables bevel cutting with tilting up to 50°.

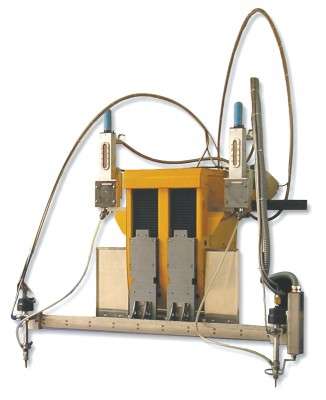

This tool station with up to 4 cutting nozzles is designed for simultaneous cutting of identical parts with waterjet technology.
This equipment is designed for mechanical sludge removal from an AquaCut tank.
Control System Accessories
It is possible to add another touch screen on the gantry which has the all function like the touch screen on the MMI console.
Laser Cutting Accessories
The 3D tilting head is designed for cutting of precise parts with bevel – possible bevel types are V, Y, K and X.
Routing Accessories
Designed for 3D CNC milling of mild metals, plastics and wood by means of high-revolution spindles.
