Affordable CNC Plasma Cutting Solutions
A huge range of high quality and economical CNC plasma cutters and plasma cutting tables are now available to British manufacturers following our recent partnership with MicroStep.
Matched with a superb range of accessories, City Plasma offers engineers truly ground-breaking, versatile and affordable CNC plasma cutting solutions.
We will work closely with you to ensure the CNC plasma cutter you need is optimised to your exact requirements; and did we mention how affordable these machines are? Contact us and see for yourself!!
With plasma cutting technology, all conductive materials such as mild steel, stainless steel and aluminium, in the medium material thickness, range can be processed speedily and economically.
The advantages of modern CNC plasma cutters are high quality results, high cutting speeds and only a small heat-affected zone produces the unbeatable cost-benefit ratio compared to other cutting technologies.
With over 30 years of working with CNC plasma cutting machines, you can trust us to provide you the best equipment for your needs.
Extensive range of HD CNC Plasma Cutters
The PL Compact
The ideal entry into plasma cutting machining
Compact HD Plasma Cutter Machine
The PL series CNC plasma cutting machines boasts an excellent capability/price performance and impresses with its space saving and short installation period.
Available in four sizes of work area: 3m x 1.5m; 2m x 1.5m; 3m x 2m and 4m x 2m.
Specifications:
- Working Length: 1500mm – 2000mm
- Working Width: 2000mm – 4000mm
- Dual-side synchronised drive system
- Integrated MMI control panel
The MasterCut Compact
Working areas range from 1.5m x 1.5m to 6m x 2m
Flawless plasma cutting of small holes, sharp corners and true contours
Dynamic and high-precision the MasterCut Compact supplies flawless plasma cutting of small holes, sharp corners and true contours at a very competitive price.
The cutting machine is easily moveable within the machine shop and its pre-assembled design promises a speedy installation process.
Table Size:
- Working Length: 1500mm – 6000 mm
- Working width: 1500mm – 2000mm
- Bevel cutting with optional Plasma 3D Tilting Tool Station
- Excellent exhaust efficiency
The MasterCut
Versatile and reliable gantry plasma cutting table
Up to four plasma or six oxyfuel torches
A flexible gantry-style CNC plasma cutter that works effectively in both small workshops and for dedicated machining processes based in large manufacturing units.
The MasterCut provides a versatile means of production with precision cutting using high-definition plasma sources.
Table Size:
- Working Length: 1,500mm – 30,000mm
- Working Width: 1,500mm – 4,000mm
- Pipe Cutting: 30mm – 700mm dia. (max 10t)
- Drilling: Up to 13mm dia.
The MG
Super heavy-duty CNC plasma cutter
Precision performance for long-term industrial cutting
The super heavy-duty MG CNC plasma cutter gives highest precision performance for long-term industrial cutting processes providing engineers with fast and precise bevel cutting, with additional bevelling processes where material thickness prevents direct bevelling.
3D pipe & profile processing up to 1,000m dia. Dome processing up to 6,000mm dia. Fully automatic drilling up to 40mm dia. and tapping up to M33.
Automatic tool exchange, plate positioning with laser sensor or CCD camera. Heightened gantry allows oxyfuel cutting up to 250mm.
Table Size:
- Working Length: 1,500mm – 50,000mm
- Working width: 1,500mm – 8,000mm
- Pipe cutting: 30mm – 1,000mm dia. (Max. 10t)
- Heightened gantry for pipe cutting: Up to 1,500mm dia. (Max. 12t)
- Drilling and tapping: 4m – 40mm; M4 – M33
The DRM
CNC Plasma Dome and Sheet Cutting Machine
For versatile dome, sheet and pipe cutting
Fast and precise bevel cutting multi-tool cutting. Special design of the cutting tables, notably a table with extraction system for dome cutting.
Special rotator with bevel up to 90° for tubes and domes processing and high performance spindles for drilling. Automatic drilling tool change using rotary tool magazines for 16 tools with automated through tool cooling for optimal lubrication.
Table Size:
- Working Length: 3,000mm – 30,000mm
- Working Width: 1,500mm – 8,000mm
- Pipe Cutting: 30mm – 1,500mm dia. (Max 12t)
- Dome processing up to 10,000mm
- Drilling and tapping: 4mm – 60mm; M4 – M33
The DS
CNC plasma cutting for automated plate processing lines
CNC plasma cutters for automation
Designed for highly efficient plasma drilling and cutting, with the option of automatic plate feeding and automatic part sorting on output.
Perfect for machining high-precision fittings for structural steel applications, such as gusset plates, endplates and flanges.
Along with drilling, 2D and bevel cutting for weld edge preparation up to 52°; plasma and oxyfuel cutting, tapping, countersinking as well as scanning and marking are possible.
Cutting of mild steel with plasma up to 50mm and oxyfuel up to 100mm. High-quality plasma cutting with high-definition plasma as well as with standard
air plasma sources or oxyfuel cutting technology
Table Size:
- Working Length: 6000mm
- Working Width: 2000mm
- Drilling: 4mm – 40mm dia;
- Tapping: M4 – M33
- Plate max weight 9,000 Kg
- MicroPunch pneumatic marking and plasma marking
- Drilling range: ∅ 4 mm – ∅ 40 mm
- Tapping range: M4 – M33
- Max. dimensions of plate: 6000 x 2000 mm
- Material thickness: 6 – 100 mm

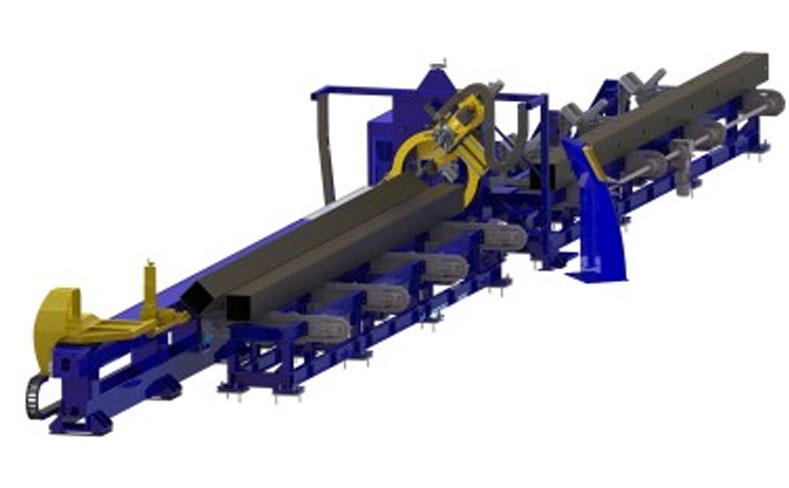

The DS-B
Dual-sided drilling and tapping of hollow profiles with square or rectangular cross-sections
Automated Plasma Drilling Machine
Designed for dual-side high-efficiency drilling and tapping of hollow profiles with square or rectangular cross-sections. The DS-B boasts a high level of automation within the factory workflow with automatic loading and unloading of profiles via transversal chain conveyors. Rotary drilling support with two turret drilling heads (each head has 6 tool positions)
Table Size:
- Working Length: 3,000 – 12,000 mm
- Profile criss-section dimensions: 50 x 50 mm – 300 x 300 mm
- Drilling and tapping: 6mm – 24mm; M6 – M12
- Automatic tool exchange

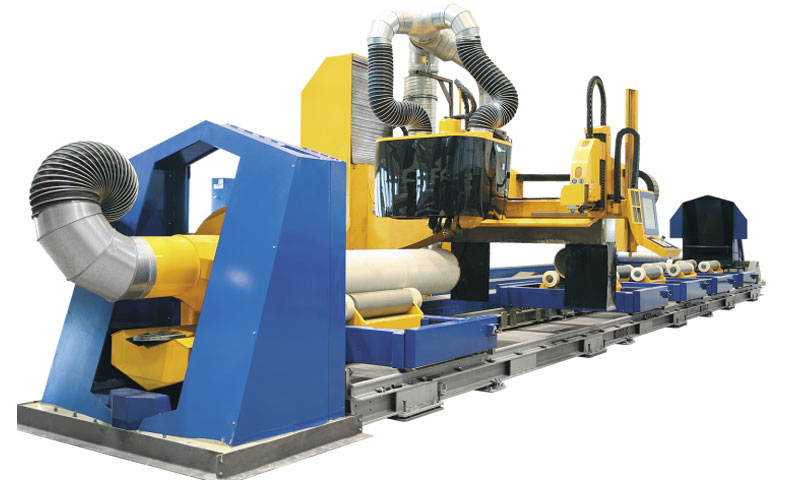

The CPCut
High definition plasma pipe and profile cutting
Plasma cutting for shipbuilding, pipeline and power plant construction
A pipe and profile plasma cutting line (using high-definition plasma as well as standard air plasma sources) for processing ranges of pipe diameters and lengths.
The modular design enables a wide range of pipe based applications including trimming, cutting of various openings for multiple pipe and profile intersections or connections, welding seam preparation as well as pipe marking.
Cutting of mild steel with plasma up to 50mm and oxyfuel up to 60mm.
Table Size:
- Working Length: max. 12,000mm
- Pipe diameter: 100mm – 1,500mm
- Max. speed in X direction: 30m/min
- Bevel Cutting: Yes
The ElbowCut
Trimming, elbow and pipe intersections, weld edge preparation and marking of elbows
CNC Elbow Plasma Cutting Machine
This quality elbow cutting machine is designed for various elbow based applications incl. trimming, elbow and pipe intersections, welding seam preparation and marking of elbow in a diameter range of 80mm to 400mm dia.
ElbowCut provides high-quality cutting with high-definition plasma as well as with standard air plasma sources.
Tech Info:
- Range of elbows: DN 80 (da = 88.9 mm), DN 100, DN 125, DN 150, DN 200, DN 250, DN 300, DN 350, DN 400 (da = 406.4 mm)
- Range of wall thicknesses: 2mm – 12mm
- Elbow types:
- Type 2 → r = 1.0 x da
- Type 3 → r = 1.5 x da
- Max weight of elbow: 90Kg
The PipeCut
Optional automatic loading and unloading for increased productivity
HD plasma cutting for pipes and profiles
Modular pipe and profile HD plasma cutting machine designed for a wide range of pipe based applications: trimming, cutting of holes for multiple pipe and profile intersections, welding seam preparation and pipe marking.
Also with standard air plasma sources.
Table Size:
- Working Length: max 12,000 mm
- Pipe diameter:
- round; 30mm – 800mm dia.
- square; 30mm – 212mm

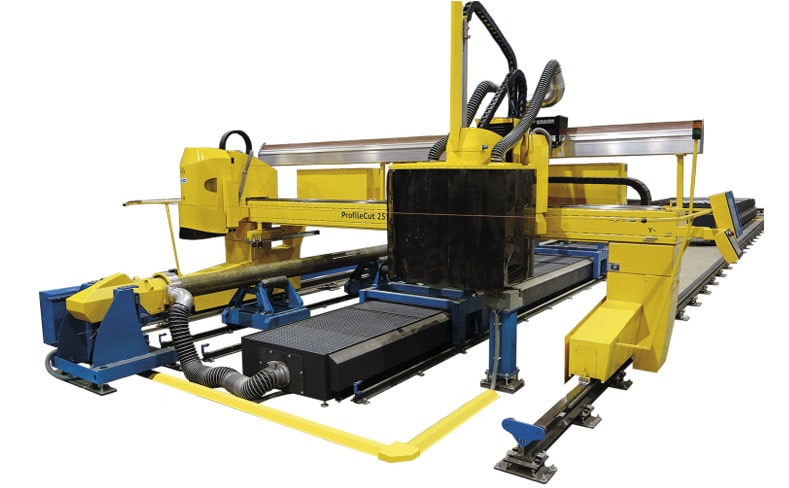

The ProfileCut
Dedicated for the production of steel structures
CNC plasma cutting for profiles and steel sheet
ProfileCut is a versatile plasma cutting machine dedicated for the production of structural steel fabrications allowing precisely cut bolt holes, copes, haunches and other complex features. Cutting of mild steel with plasma up to 50mm and oxyfuel up to 300mm.
ProfileCut has a dedicated zone for the cutting of structural profiles such as I, U or L.
Table Size:
- Working length: 1500mm – 50,000mm
- Working width: 1500mm – 8000mm
- Pipe cutting: 100mm – 1500mm (max 12t)
- Hollow pipe cutting: 100mmx 100mm – 600mm x 600mm
- H-profile cutting: max HEB 1000
- Drilling and tapping: 4mm – 40mm dia. M4 – M33, automatic tool exchange
