CNC laser cutters with cutting table lengths up to 50 metres
City Plasma supplies a comprehensive range of CNC laser cutting machines which span most manufactoring needs; from space-saving CNC laser cutters to sophisticated laser cutting centers. All of which offer various cutting table dimensions, automation alternatives, and optional cutting tools and software.
Featuring cutting-edge laser power sources and precision cutting heads, along with important and effective fume extraction and secure enclosures; our range of cutting machines are delivered as ready-to-use solutions.
You can be assured that the MSF range of CNC laser cutters are equipped with a diverse range of features to fulfill your ever-evolving manufacturing demands.
CNC Laser Cutting Machine Prices
We are in the process of adding our prices of CNC laser cutting to our website. Please bear with us as we go through the process of adding the PDFs.
££ Remember to ask for your discount! £
25% OFF
All CNC laser cutting machines
- Unrivalled functionality
- Unique control system
- Dual PC setup
Our focus on specialised control systems and dual PC setup underscores our commitment to supplying our customers with sophisticated and highly efficient fibre laser cutting machines along with exceptional option extras.
With a powerful 8kW laser cutter, the MSF Compact is a highly-efficient and compact fibre laser cutting machine. Designed for customers with limited space this machine incorporates cutting-edge technology and features found in our larger MSF series machines.
Prices from: £240,000
Sale Prices from: £180,000
Save even more, click here to learn about ‘tax relief’ finance options
Cutting area (width by length):
- 1000mm x 2000mm
- 1250mm x 2500mm
- 1500mm x 3000mm
“Flexing boundaries with exceptional value and precision”

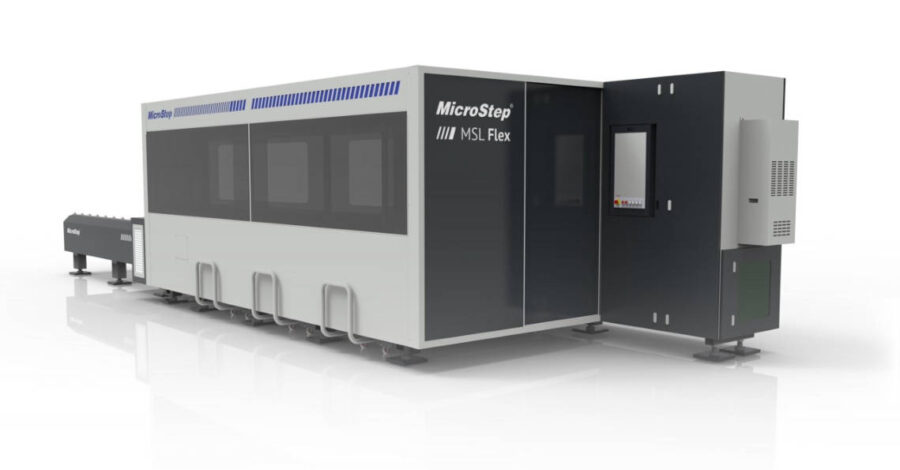

With options up to a powerful 12kW laser cutter, the MSL Flex is a precision, cost effective CNC laser cutting machine designed to provide an ideal entry point into the realm of laser cutting. MSL Flex offers excellent value for money without sacrificing quality.
Prices from: £210,000
Prices from: £210,000
Sale Prices from: £157,500
Save even more, click here to learn about ‘tax relief’ finance options
Cutting area (width by length):
- 3000mm x 1500mm
- 4000mm x 2000mm
- 6000mm x 2000mm
- 6000mm x 2500mm
“An excellent balance of affordability and performance”
The MSF Cut laser cutter is an optimal production tool for precision cutting. Laser sources with powers from 1kW up to 15 kW are available. MSF Cut delivers outstanding dynamics, thanks to a robust welded gantry, high-torque digital AC drives, precision planetary gears, and advanced tool motion control.
Prices from: £390,000
Sale Prices from: £292,500
Save even more, click here to learn about ‘tax relief’ finance options
Cutting area (width by length):
- 3000mm x 1500mm
- 4000mm x 2000mm
- 6000mm x 2000mm
“Versatile laser cutting with multi-functional material processing”
The MSF Pro provides multi-functional processing with laser sources from 1kW up to 20kW. The MSF Pro includes 2D and 3D cutting of sheets with bevels up to 45°. Drilling, tapping, countersinking, and marking.
Turret drilling head up to 15mm dia and tapping up to M16 options, along with dedicated pipe & profile cutting zone processing pipes up to 500mm dia and lengths up to 12m and hollow sections up to 350mm x 350mm.
Cutting area options:
- working length from
1,000mm to 12,000mm - working width from
1,500mm to 3,000mm
“A giant with multi-functional material processing”
Developed for large-scale cutting tasks, the MSF Max 3D laser cutting machine is supplied with table dimensions as large as 50 x 6 m. It is specialised for custom applications where wide working areas are required.
MSF Max can be equipped with one or two bevel heads enabling bevel cutting up to 45°, a drilling tool station for drilling up to 30mm dia, countersinking and tapping up to M20 and different options for marking
Cutting area options:
- working length from
1,000mm to 50,000mm - working width from
1,500mm to 6,000mm
- Unrivalled functionality
- Unique control system
- Dual PC setup
Our focus on specialised control systems and dual PC setup underscores our commitment to supplying our customers with sophisticated and highly efficient fibre laser cutting machines along with exceptional option extras.
CNC laser cutting machines are crucial in your manufacturing environment!
A CNC laser cutting machine is an advanced industrial tool used for precision cutting of various materials, most commonly metal. The laser cutting operations are controlled by a computer which execute precise cutting operations based on digital designs or instructions, otherwise known by the acronym of CNC.
CNC fibre laser cutting machines are crucial tools for modern manufacturing and fabrication processes due to their precision, speed, and versatility. They play a significant role in shaping various industries by enabling efficient and accurate material processing.
CNC fibre laser cutting machines have several important key features:
Cutting:
CNC laser cutting machines use a high-powered fibre laser as their energy source. The laser beam is directed through a series of mirrors and a focusing lens to a point on the material’s surface. The intense energy of the laser beam causes the material to melt, vaporize, or be blown away, resulting in a precise and clean cut.
Materials:
CNC laser cutters are primarily used for cutting various types of metals, including stainless steel, carbon steel, aluminium, brass, copper, and more. They can also be used for some non-metal materials like plastics.
Precision:
These machines offer extremely high precision and accuracy in cutting. They can achieve cuts with tolerances of fractions of a millimetre, making them ideal for applications that require intricate designs and tight tolerances.
Efficiency:
Fibre lasers are known for their high cutting speeds, which can significantly improve productivity compared to other cutting methods. The combination of high power and high beam quality contributes to efficient material processing.
Automation:
Sophisticated CNC fibre laser cutting systems operate with high automation and computer control. Users program the cutting process using Computer-Aided Design (CAD) and Computer-Aided Manufacturing (CAM) software. The machine’s computer control ensures consistent and repeatable cuts according to the design specifications.
Versatility:
These machines can handle a wide range of cutting tasks, from simple straight cuts to complex shapes and intricate patterns. They can also perform bevel cutting, which is cutting along an angle to create chamfered edges.
Waste:
Due to their precision, CNC fibre laser cutting machines minimize material waste by optimizing the layout of cuts within a sheet of material, reducing the amount of scrap produced.
Environment:
Fibre lasers are more energy-efficient compared to other laser types, and they generate minimal waste and emissions. This makes them a more environmentally friendly option for industrial cutting.
Maintenance:
While these machines are generally reliable, they do require regular maintenance to ensure optimal performance. Maintenance tasks can include cleaning optical components, checking and aligning mirrors, and ensuring proper cooling of the laser source.
Applications:
Industries such as manufacturing, automotive, aerospace, electronics, and jewellery making widely use CNC fibre laser cutting machines. These machines perform tasks ranging from prototyping and small-scale production to large-scale industrial manufacturing.
