Prices from
£53,995
Contact us now for ‘SPARKTACULAR’ introductory offers

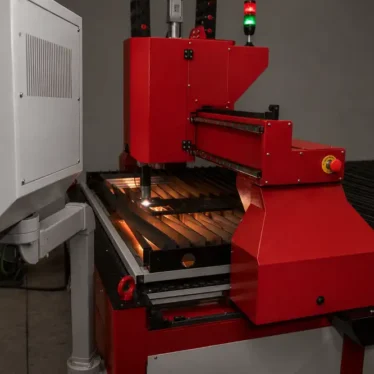

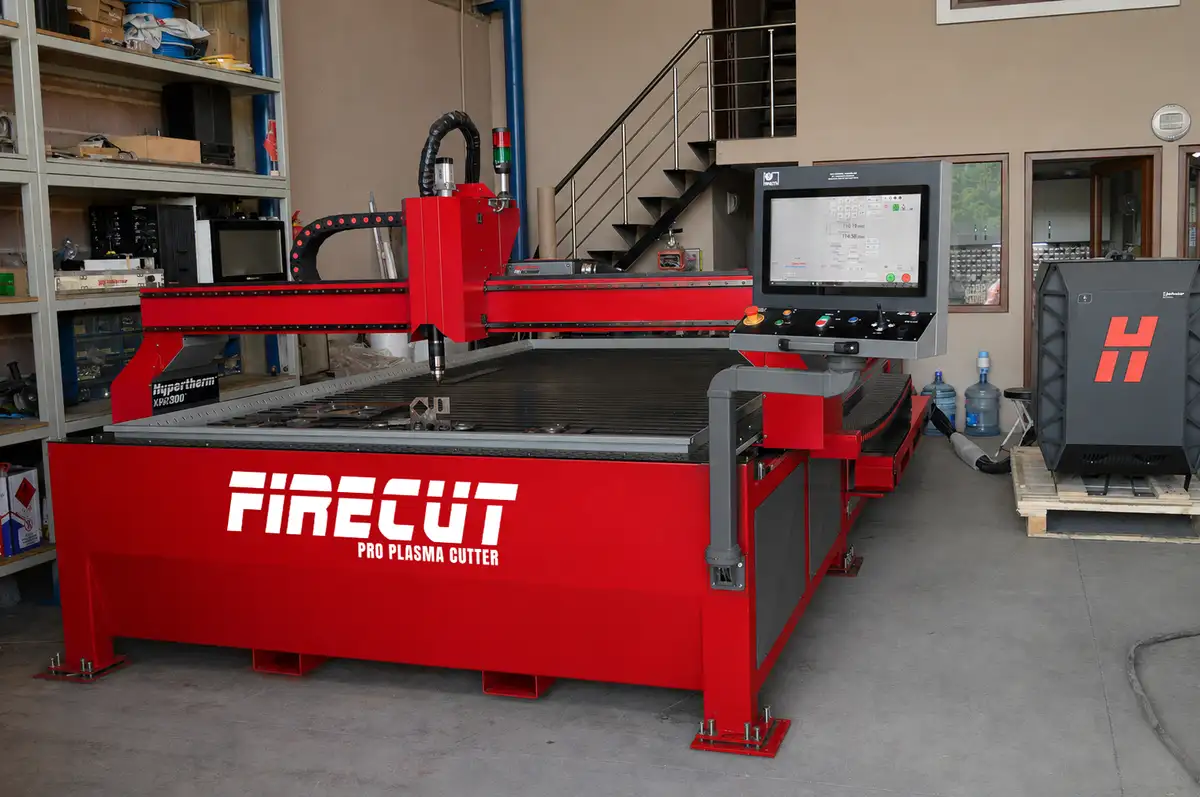

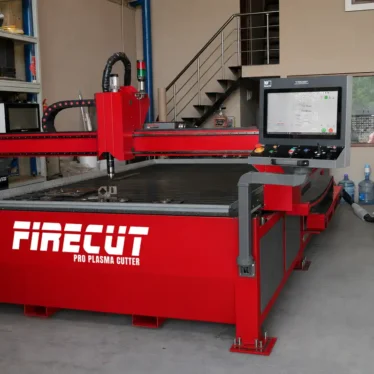

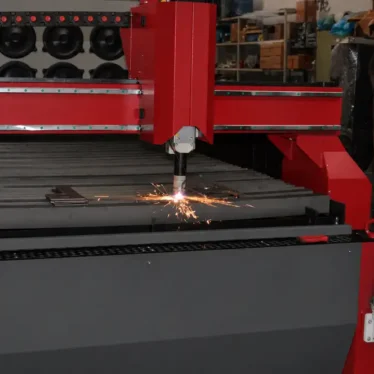

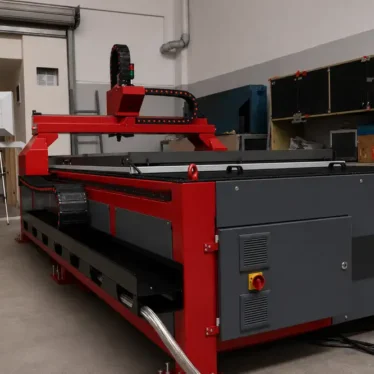

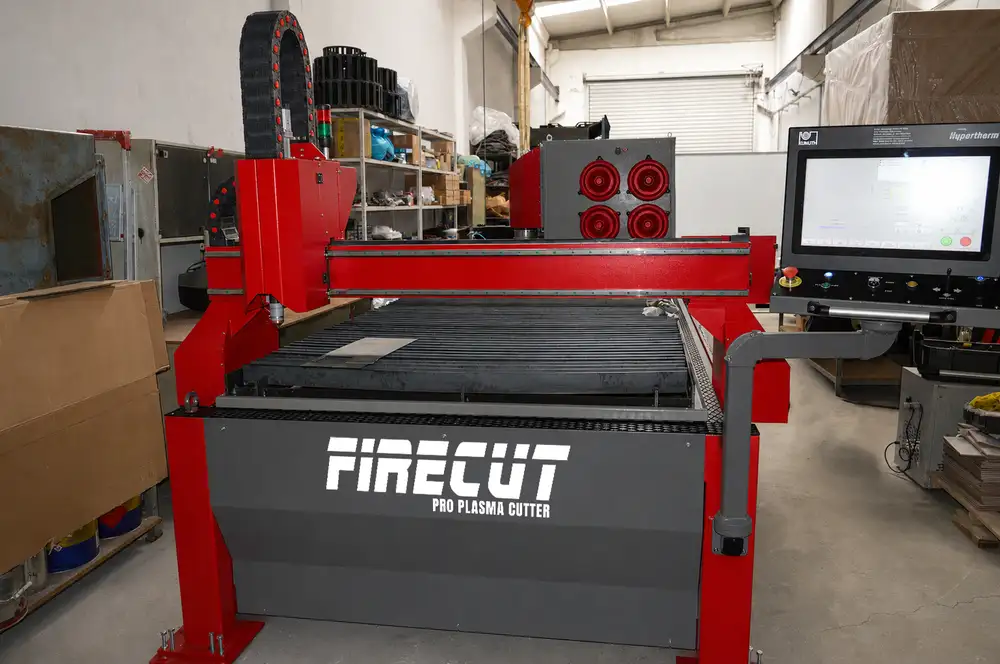

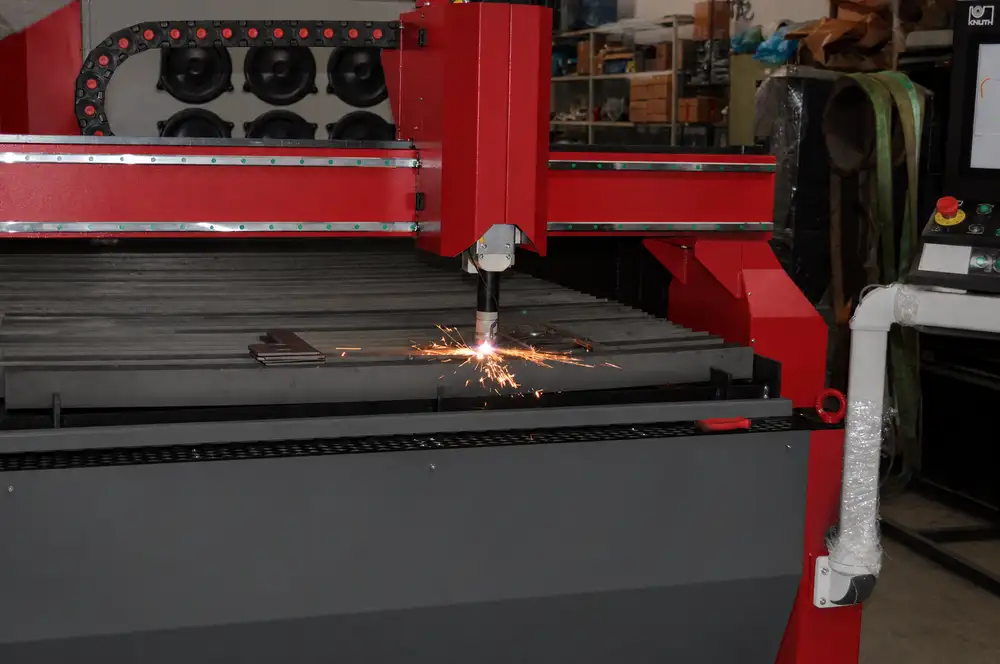

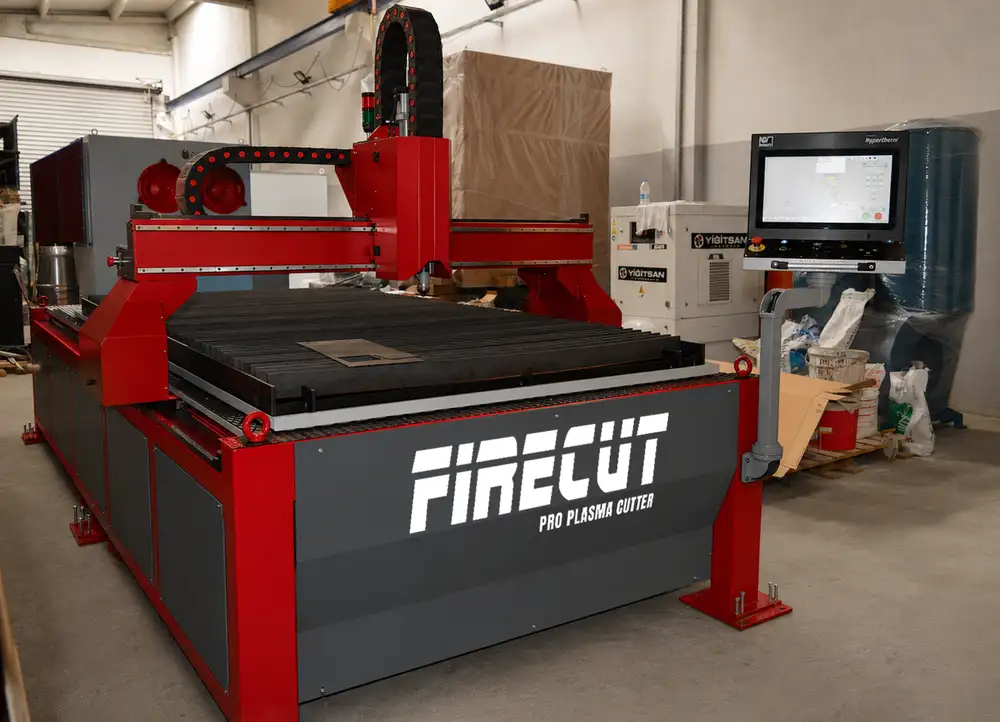

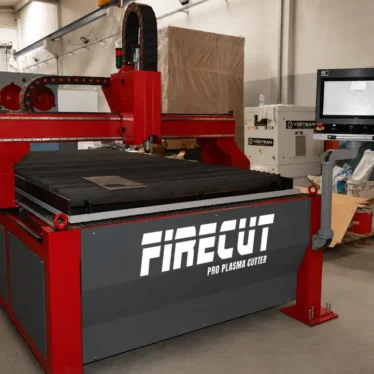

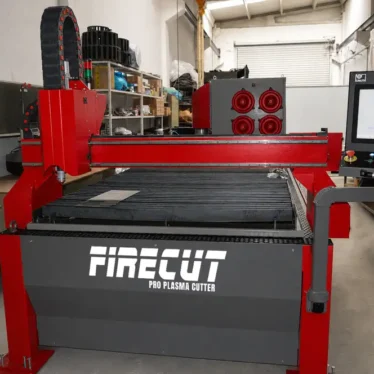

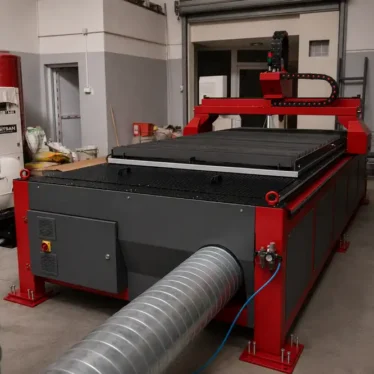

The FIRECUT Pro CNC Plasma Cutting Table is a high-performance, gantry-based CNC cutting system engineered for demanding production environments requiring precision, speed, and reliability. Designed for the accurate cutting of all electrically conductive sheet metals—including mild steel, stainless steel, aluminium, and galvanised steel—it delivers consistent, industrial-grade results across a wide range of fabrication applications.
FIRECUT Pro integrates Hypertherm Edge Connect CNC control with Phoenix software, combined with full ProNest nesting and cut optimisation. This advanced software environment embeds cutting parameters directly into the program, enabling automated toolpath generation, reduced setup time, and repeatable high-quality output, even for less experienced operators.
Built on a rigid steel frame with precision-machined structural components, Firecut Pro is designed for stability under sustained, multi-shift operation. Motion is driven by powerful 750W EtherCAT servo systems on all axes, paired with helical rack and pinion drives, Hiwin linear guides, and low-backlash planetary gearboxes to deliver smooth, high-speed, and highly accurate positioning across large-format cutting areas.
FIRECUT Pro is a production-focused CNC plasma system offering enhanced performance, increased load capacity, and extended cutting areas compared to standard models. Available in sizes from 2m x 1m up to 4m x 2m, with table load capacity up to 1000 kg/m² and rapid traverse speeds of up to 25,000 mm/min, it is ideally suited to high-throughput workshops, industrial fabrication, and businesses requiring scalable, heavy-duty cutting capability.
Available Configurations
-
2000 x 1000 mm
-
3000 x 1500 mm
-
4000 x 2000 mm

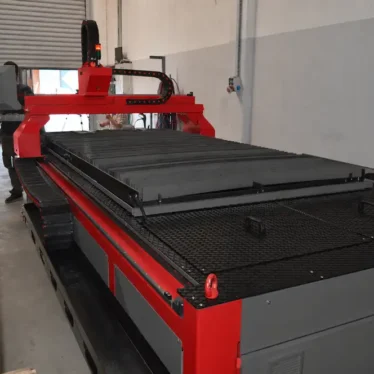

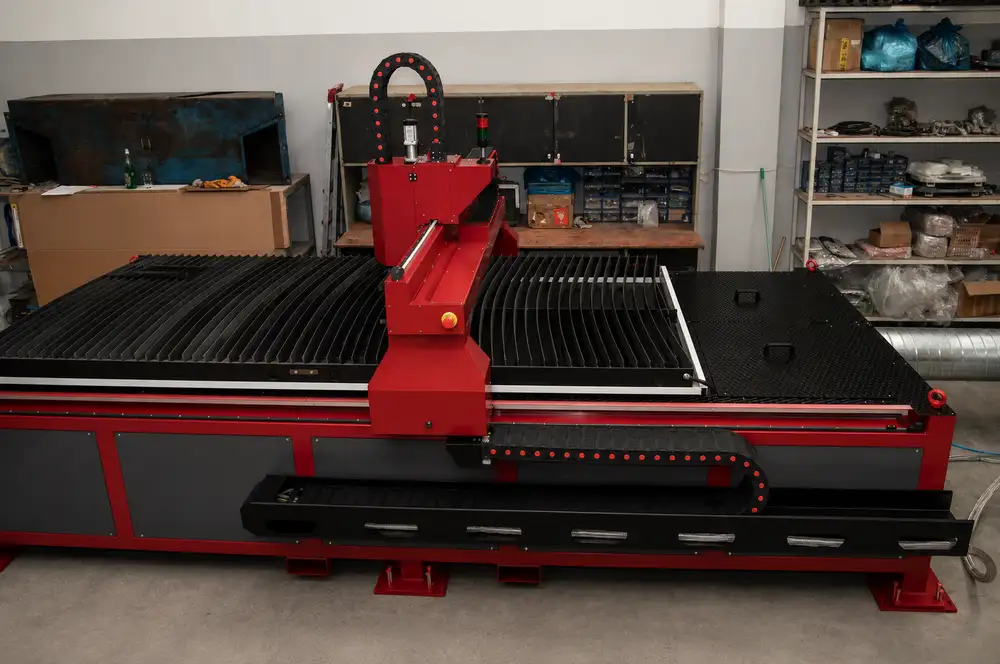

Machine Build & Structure
- Reinforced industrial welded steel frame
- Precision dual-drive gantry for high-speed, stable motion
- Hiwin linear motion system across all axes
- Premium planetary gearboxes for backlash-free transmission
- Designed for continuous, high-throughput production environments
Technical Specifications
Cutting Performance
- Maximum cut area: up to 2000 × 4000 mm (model dependent)
- Maximum vertical clearance (torch to table): 250 mm
- Table load capacity: 1200 kg/m²
- Material compatibility: all conductive metals
Motion System
- Rapid traverse speed: up to 20,000 mm/min
- Axis positioning system: EtherCAT-controlled servo drives (closed-loop)
- Drive system: precision rack and pinion (1.5–2 module)
- X-axis: helical rack and pinion drive
- Y-axis: helical rack system
- Z-axis: ball screw linear module (250 mm stroke)
Accuracy
- Axis positional accuracy: ±0.02–0.04 mm (model dependent)
Key Benefits
-
High-performance EtherCAT motion system
750W servo drives with EtherCAT control deliver higher traverse speeds, improved acceleration, and reduced cycle times for increased throughput.
-
Reinforced industrial gantry & frame structure
Heavy-duty welded steel construction and floating bridge design minimise vibration and maintain accuracy under continuous production loads.
-
Automatic torch height control (ATHC)
Arc voltage and ohmic sensing maintain optimal cutting height, improving cut quality and extending consumable life.
-
Integrated CAD/CAM & nesting workflow
Seamless compatibility with Hypertherm Phoenix and ProNest enables direct file import, automated nesting, and efficient toolpath generation.
-

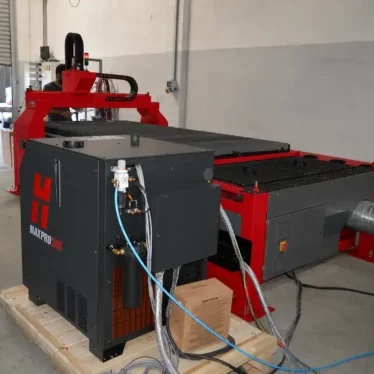

Multi-system plasma compatibility
Supports a wide range of industrial plasma systems, including Hypertherm Powermax, MaxPro, and XPR series.
-
Cut Pro Wizard workflow system
Simplified 4-step process to import nesting files, align the plate, and initiate cutting with minimal operator input.
-
Production-optimised motion architecture
High-speed EtherCAT servo system across all axes enables rapid traverse speeds up to 25,000 mm/min, reducing overall job times.
| Model / Specification | Units | FIRECUT PRO 2000×1000 | FIRECUT PRO 3000×1500 | FIRECUT PRO 4000×2000 |
|---|---|---|---|---|
| Working Area | ||||
| Max cut area | mm | 2050×1050 | 3050×1550 | 4050×2050 |
| Max vertical distance between cutting head and work table | mm | 200 | ||
| Table height | mm | 600 | ||
| Table load capacity | kg/m² | 1000 | ||
| Travels | ||||
| Travel Y-axis | mm | 1300 | 1800 | 2300 |
| Travel X-axis | mm | 2400 | 3400 | 4400 |
| Travel Z-axis | mm | 200 | ||
| Feeds | ||||
| Rapid feeds | mm/min | 25000 | ||
| Precision | ||||
| Axis positional accuracy | mm | 0.02 | ||
| Measurements and Weights | ||||
| Machine dimensions (L×W×H) | mm | 3500×1750 | 4500×2225 | 5500×3075 |
| Packing dimensions (L×W×H) | mm | 3700×1800 | 4700×2275 | 5700×3125 |
| Fume filter capacity | m³ | 4000 | ||
| Net weight* | kg | 2075 | 2560 | 4550 |
| Gross weight* | kg | 2125 | 2610 | 5000 |
| *Weights may vary ±10% depending on configuration | ||||
| Construction | ||||
|
Table type: Stand-alone with bottom frame connection
Suction type: Water table or vacuum system with automatic shutter control
Dual-bridge drive: Yes
Linear guides: X-axis HIWIN 20 mm / Y-axis HIWIN 25 mm
Z axis: Linear module (200 mm stroke)
Gearboxes: APEX / EISELE / ELT planetary

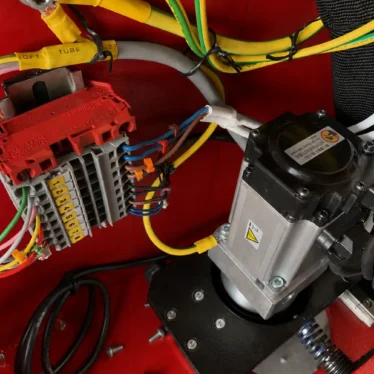

Servo motors: 750W Panasonic EtherCAT
XY transmission: K.H helical rack (1.5 module)
Z transmission: Ball screw and linear rail system
THC: Hypertherm Sensor THC / Eckelmann
Torch coupling: Magnetic with crash sensor
CNC unit: Hypertherm Edge Connect / Kjellberg Eckelmann
Software: Hypertherm Phoenix
Touchscreen: ELO 19”
I/O module: Beckhoff EtherCAT
Pneumatics: Winman
Features: Remote assist / Auto resume / Laser pointer
Delivery: 7–9 weeks
|
||||
Features
Hypertherm SYNC Cartridges
SYNC cartridges last up to twice as long and lock in with a simple twist — no stacking parts, no mix-ups. Faster swaps, fewer mistakes, less downtime.
Drive & Motion System
EtherCAT servos & drives, linear rails and precision helical gearboxes on X/Y axes for backlash-free, smooth motion.

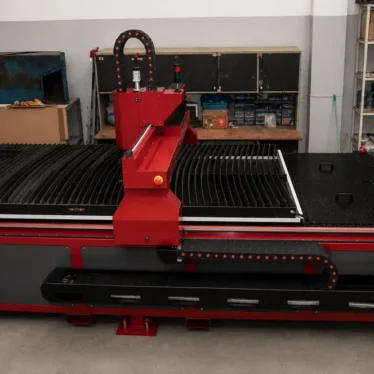

Floating Bridge
A floating bridge design allows the gantry to self-align during motion, reducing stress and ensuring consistent cutting accuracy.

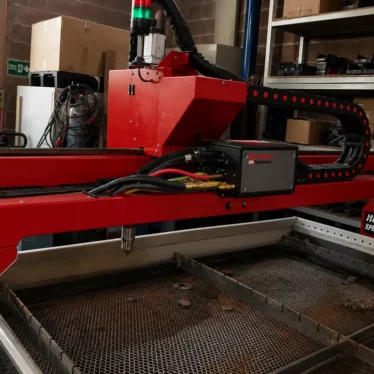

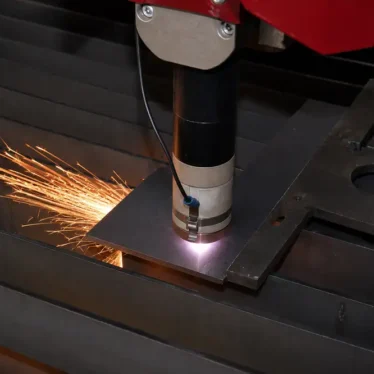

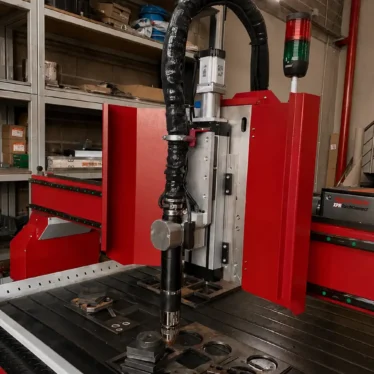

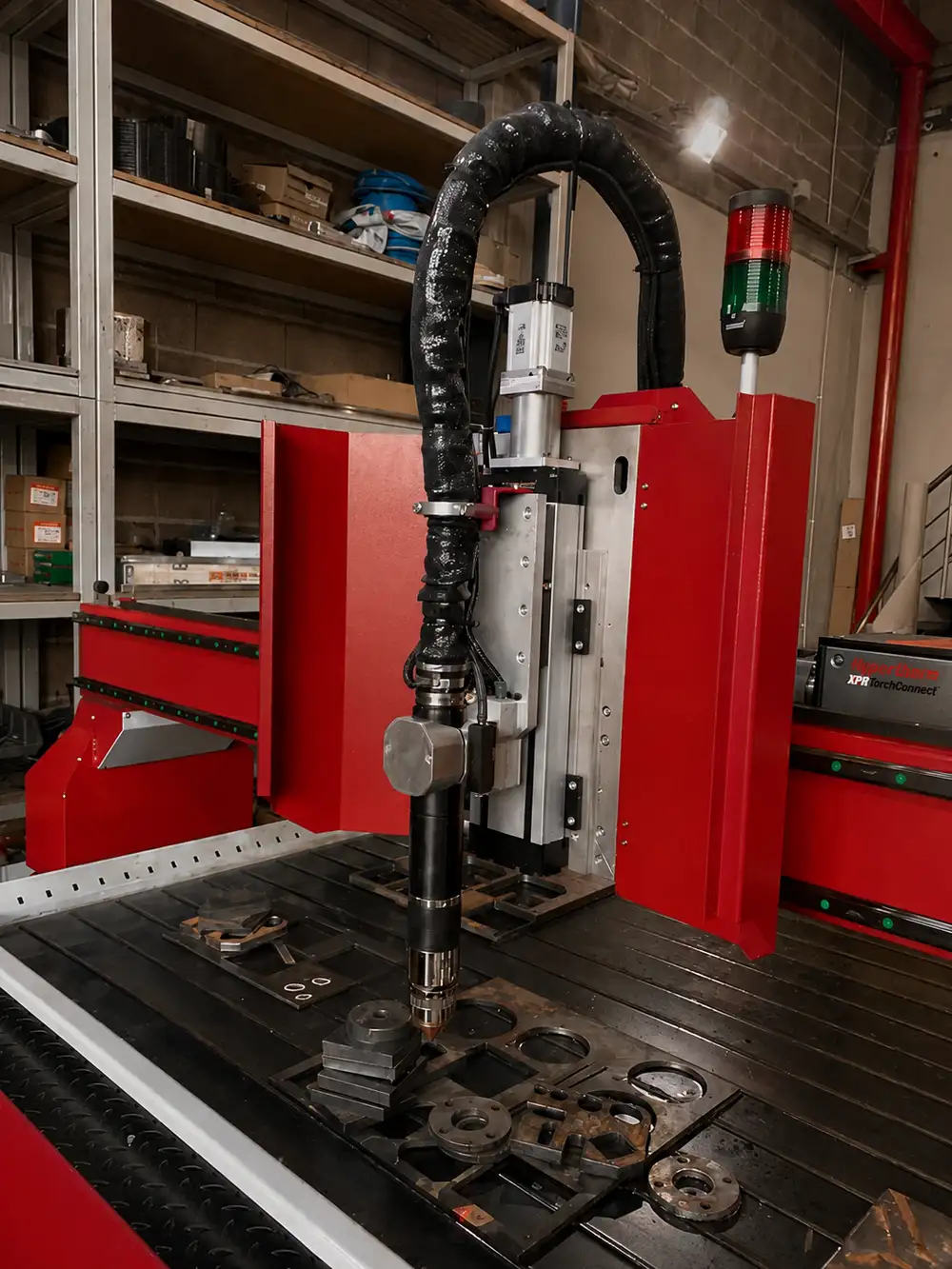

Height Control System (THC / Lifter)
- Automatic Torch Height Control (THC): Hypertherm Sensor THC
- Collision protection: magnetic breakaway coupling system
- Z-axis crash protection integrated
- Maintains optimal arc voltage and standoff distance for cut consistency
| Hypertherm Cutting Data | |||
|---|---|---|---|
| Model | Mild Steel Pierce/Severence | Stainless Steel Pierce/Severence | Aluminium Pierce/Severence |
| Powermax 45 SYNC | 12mm/29mm | 12mm/29mm | 12mm/29mm |
| Powermax 65 SYNC | 16mm/32mm | 16mm/32mm | 16mm/32mm |
| Powermax 85 SYNC | 20mm/38mm | 20mm/38mm | 20mm/38mm |
| Powermax 105 SYNC | 22mm/50mm | 22mm/50mm | 22mm/50mm |
| PowerMax 125 | 25mm/44mm | 25mm/57mm | 25mm/57mm |

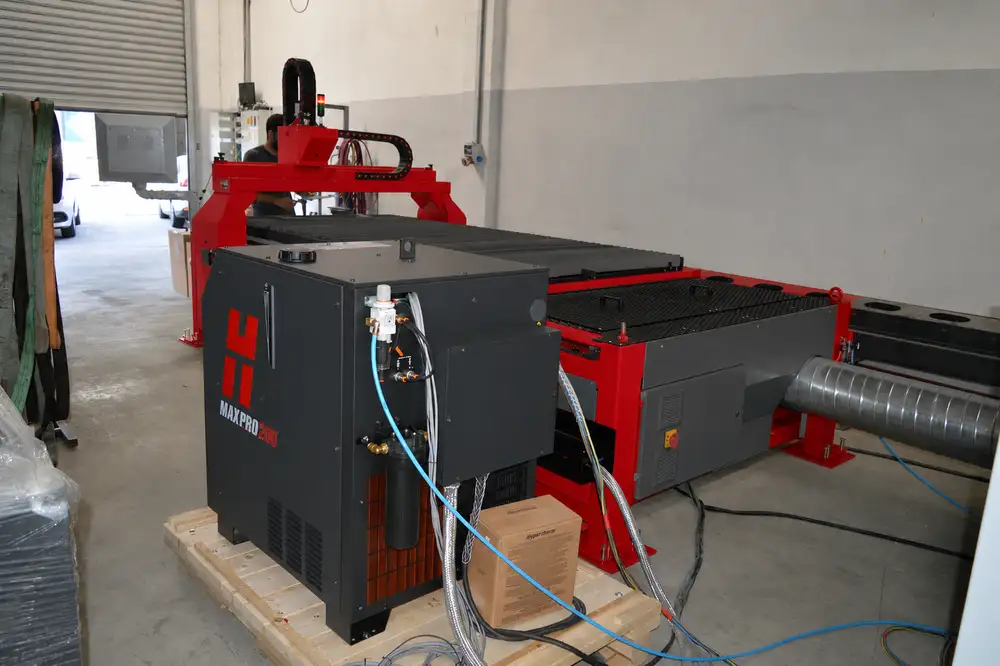

| MaxPro 200 | 32mm/75mm | 20mm/64mm | 32mm/75mm |
| XPR 170 | 35mm/60mm | 22mm/38mm | 25mm/38mm |
| XPR 300 | 45mm/80mm | 38mm/75mm | 38mm/50mm |
| Note: SYNC values are single published capacities applied across all three materials. Actual results vary with material, gas, consumables, and setup. | |||

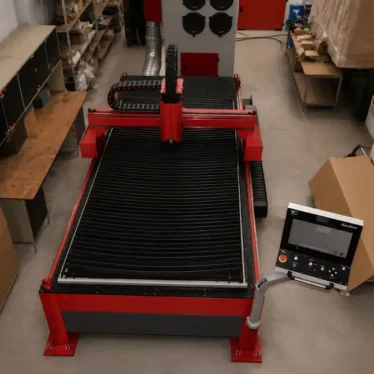

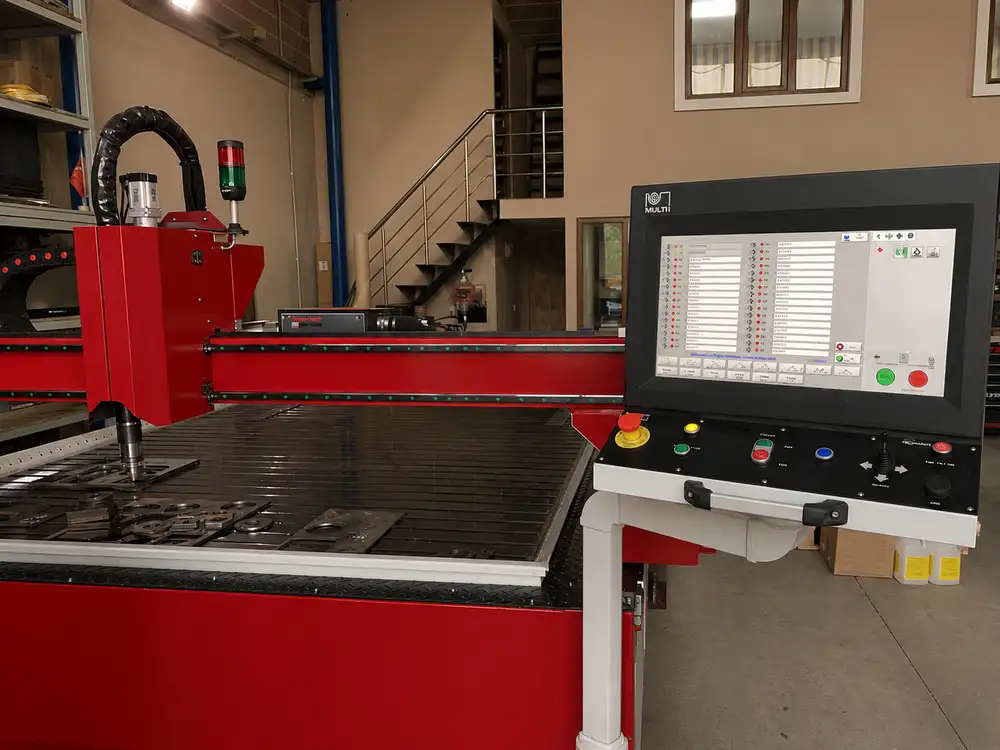

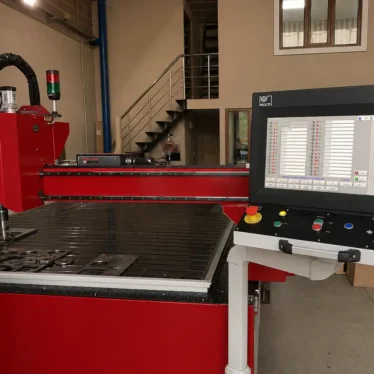

Operator Control Panel
Edge Connect drives every move all through our purpose-built Control Panel.
-
19″ touch LCD displays full system feedback
-
CutPro Wizard: Load > align > Cut
(ready for cutting in 2 mins) -
Built-in Ethernet link for file sync & remote help.
Nesting & cut Software
ProNest, nesting and optimisation software auto-applies the best cutting methods – enabling consistent, high quality parts with minimal operator input.
Edge Connect
Cut Pro Wizard
Frequently Asked Questions
Choosing the right plasma cutting table is essential for achieving accuracy, efficiency, and consistent cut quality in metal fabrication. Below you’ll find answers to common questions about how plasma cutting tables work, what materials they handle, and why FIRECUT is a trusted CNC plasma cutting solution.
Q: What is the FIRECUT Pro designed for?
A: FIRECUT Pro is a high-performance CNC plasma cutting system designed for professional fabrication environments requiring higher throughput, larger cutting envelopes, and continuous-duty operation. It is suitable for production workshops, subcontract manufacturers, and industrial fabrication users.
Q: What materials can FIRECUT Pro cut?
A: FIRECUT Pro is designed to cut all electrically conductive metals, including mild steel, stainless steel, aluminium, and galvanised steel, depending on the plasma power source selected.
Q: What size options are available?
A: The FIRECUT Pro is available in three cutting formats:
- 2 m × 1 m
- 3 m × 1.5 m
- 4 m × 2 m
All models are designed for scalable production requirements while maintaining the same core machine architecture.
Q: What control system does FIRECUT Pro use?
A: FIRECUT Pro uses Hypertherm Edge Connect CNC control with Phoenix software. It is fully integrated with ProNest nesting and cut optimisation software, allowing automated toolpath generation and embedded cutting parameters within each part program.
Q: What level of accuracy can I expect?
A: The system achieves positional accuracy of approximately ±0.02 mm, depending on configuration and table size, supported by EtherCAT servo control and high-precision linear motion components.
Q: What drive system does the machine use?
A: FIRECUT Pro uses 750W Panasonic EtherCAT servo motors with fully synchronised axis control. Motion is transmitted via helical rack and pinion systems combined with Hiwin linear rails and low-backlash planetary gearboxes.
Q: Is FIRECUT Pro suitable for continuous or multi-shift operation?
A: Yes. The machine is engineered for industrial duty cycles and is capable of sustained operation across multiple shifts in production environments.
Q: What is the maximum cutting speed?
A: FIRECUT Pro supports rapid traverse speeds of up to 25,000 mm/min, depending on configuration and application.
Q: Does the machine include automatic torch height control?
A; Yes. FIRECUT Pro uses automatic torch height control (ATHC) based on arc voltage and ohmic sensing to maintain consistent cutting distance, improving cut quality and consumable life.
Q; What plasma systems are compatible?
A: FIRECUT Pro supports a wide range of industrial plasma systems, including:
- Hypertherm Powermax series (45–125 Sync)
- Hypertherm MaxPro 200
- Hypertherm XPR 170 / 300
Q: What software is included with the machine?
A; The system includes Hypertherm Phoenix CNC control software and ProNest nesting software for automated cutting path optimisation and production workflow management.
Q: What safety and operator features are included?
A; Standard features include magnetic torch breakaway protection, crash sensing, automatic resume after power interruption, and optional rope safety guarding systems.
Q: What table types are available?
A; FIRECUT Pro can be supplied with either a water table or sectional fume extraction table, depending on application and workshop requirements.
Q: Can the machine be customised with additional options?
A; Yes. Options include ducted extraction systems, Sideros ECO Line extraction units, pneumatic marking tools, oxy-fuel torches, and bevel cutting attachments.
Q: What is the typical delivery time?
A: Standard lead time is approximately 7–9 weeks, depending on configuration and specification.

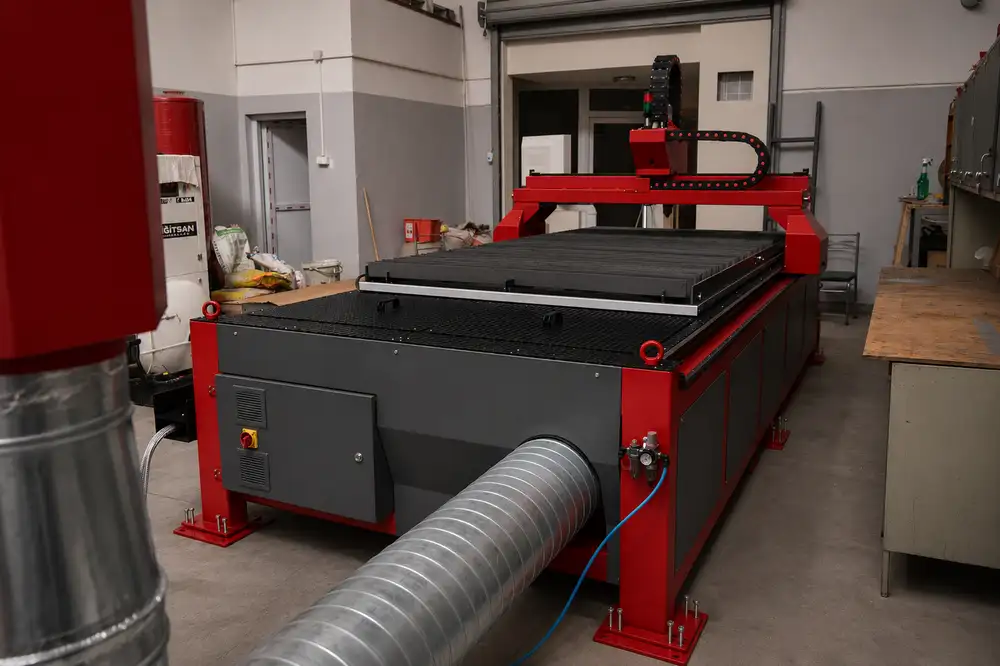

Fume Extraction
Clean safe air with Sideros Fume Extraction
Optional Sideros fume extraction system
- Filtration down to < 1mg/m³
- Captures welding, cutting & grinding fumes
- Reinforced for aluminium dust protection
No shop smoke, no risk.
