Waterjet cutting involves passing water under high pressure through a small diameter nozzle to produce a waterjet. The jet travels at a very high speed, with sufficient kinetic energy to cut a wide range of materials. If sand is added,an abrasive affect occurs that allows the waterjet to cut hard materials such as metal and stone.

What is a CNC water jet?

The working principle of water jet cutting is the same as that of water erosion, which can be seen in nature-just acceleration and concentration. The water that hits the surface of the material can loosen the particles on the material and then wash it off. Whether it is a previously loose material or abrasive particles, additives in the water will further enhance this effect.

The cutting “tool” is a high-energy water jet, a fine stream of water under high pressure (up to 400 MPa) and high speed (four times the maximum speed of sound). This technique is also called hydro-erosion cutting. When abrasive materials are used, it is called hydro-abrasive cutting. The mixture of water and abrasive aids the cutting process and is used to process hard and hard materials. Different types of abrasives can be used: certain types of sand, natural garnet, corundum, olivine; steel, glass and ceramic beads in the form of granules or sand, and plastic or alumina abrasives.

Using a water jet

Water jet cutting is commonly used in manufacturing machinery and other equipment. From mining to aircraft manufacturing, it has a place in many fields. Because the water jet is easy to adjust, it can be used to cut various types of materials, from fishing rods to titanium, with a wide range of thicknesses. There are almost no materials that can be cut by water jet, one of which is safe tempered glass, which will be scattered during cutting regardless of the technology used.

CNC water jet cutting

Water jet cutting is commonly used in manufacturing machinery and other equipment. From mining to aircraft manufacturing, it has a place in many fields. Because the water jet is easy to adjust, it can be used to cut various types of materials, from fishing rods to titanium, with a wide range of thicknesses. There are almost no materials that can be cut by water jet, one of which is safe tempered glass, which will be scattered during cutting regardless of the technology used.

Advantages of a water jet

The most important advantage of water jet cutting is that it does not create a heat-affected zone in the material, so it does not affect its internal structure and related properties. Due to cold cutting, this method can be used to cut heat-sensitive materials such as wood, thermoplastics, laminates, etc. It can also cut multiple layers of materials. Applying minimal force on the cut material will not cause microcracks. The technology is environmentally friendly and does not produce harmful fumes. Since the width of the cut is between 0.1 and 1.5 mm, and only a few millimeters of material are left between the individual cut parts, it can also effectively use the material.

WaterCut high pressure waterjet cutting machine

WaterCut highpressure water cutting machine

CNC waterjet cutting for metallic and non-metallic materials

The Watercut type machine is designed to cut metal and non-metal materials with high-pressure water jets. This is a precise technique that can achieve high-quality cutting surfaces.

Table Size:

  • Working Length: 3,000 – 6,000 mm
  • Working width: 1,000 – 2,000mm

Make an Enquiry learn more…

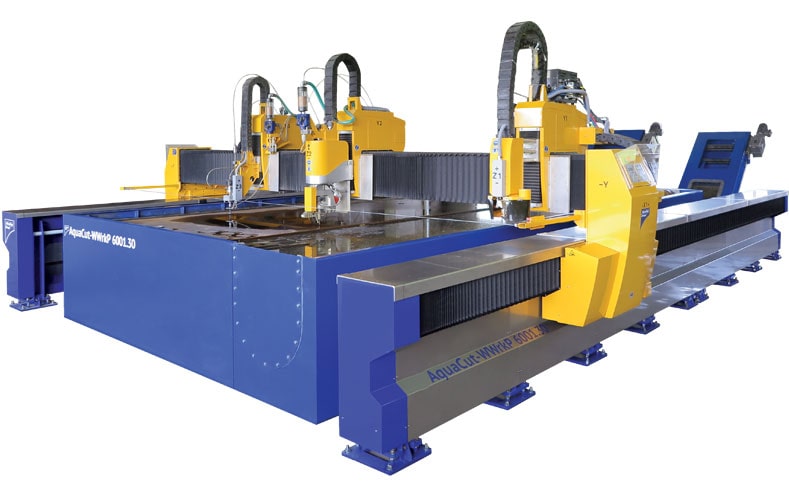

AquaCut high-precision CNC waterjet cutting machine

AquaCut high-precision CNC cutting machine

Waterjet CNC cutting suitable for a wide variety of materials

AquaCut is a high-precision CNC cutting machine designed to process a variety of materials, including those that are not subject to thermal or mechanical stress. Pure water or abrasive cutting can be applied to metal, stone, marble, armored glass, ceramics, plastics, wood, corrugated cardboard, foam materials and sandwich materials. The machine can be equipped with a 5-axis water jet rotator, and can also be combined with a plasma or drilling and tapping device.

Table Size:

  • Working Length: 3,000 – 18,000 mm
  • Working width: 1,500 – 4,000mm

Make an Enquiry PDF Brochure learn more…
