MSF Pro: Engineered for cost-effective endurance
High speed, high precision CNC cutting machine

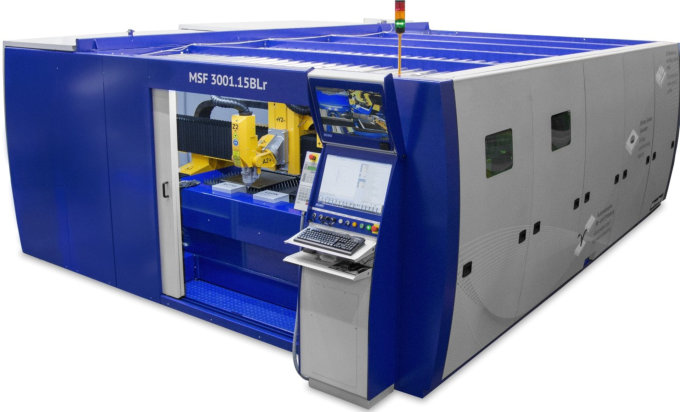

Meet the MSF Pro, the precision powerhouse that revolutionises material processing. This CNC laser cutting system is an all-rounder which elevates your capabilities with its multi-functional prowess.
2D and 3D cutting of sheets with bevels up to 45°, drilling, tapping, countersinking, and marking. Equip it with a turret drilling head for 6 tools to handle tasks like drilling up to 15mm dia. and tapping up to M16.
But that’s not all. The MSF Pro goes beyond flat surfaces, extending its reach with a pipe & profile cutting zone. It processes pipes up to 500mm dia and lengths up to 12m, or tackle hollow sections up to 350mm x 350mm in size.
The MSF Pro’s low mount, digital AC drive, and precision planetary gears synergise to deliver unparalleled performance.
The automatic shuttle table comes as standard, ensuring a seamless operation.
Precision meets efficiency with the MSF Pro – Redefined cutting excellence.
What sets the MSF Pro apart is the patented ACTG® technology, ensuring consistently precise bevel cutting with minimal downtime for maintenance. Another game-changer is the ABP technology, allowing you to add bevels to already cut parts, offering flexibility for varied workpieces.
Automatic shuttle tables come standard, and for seamless material handling, explore the automated options for sheets, pipes, and profiles. The MSF Pro is not just a machine; it’s a precision production powerhouse. Its rigid welded gantries, high-torque digital AC drives, and precision planetary gears ensure outstanding dynamics.
And let’s talk tech, it features state-of-the-art fibre laser sources, boasting powers up to 20 kW, including beam shaping technology. Default advanced functions like automatic nozzle cleaning, nozzle check by camera, predictive collision prevention, auto-monitoring of protection glass, Smart Z Movement, and DynaFly features make the MSF Pro a comprehensive solution for high-speed, highly accurate part production with surprisingly low maintenance and operational costs.
In a world where precision meets innovation, the MSF Pro stands tall, shaping the future of material processing.
Table Sizes
- Working Length: 1000mm – 12,000mm
- Working width: 1,500mm – 3,000mm
Product features
- MSF machine is a powerful laser cutting system for cutting of materials using a fiber laser, or a combination of fiber laser and plasma
- Completely integrated fiber laser cutting solution
- High motion dynamics and positioning accuracy
- Powerful and user-friendly PC-based CNC control system iMSNC®
- Machines meet contemporary safety and environmental standards
- Automatic shuttle table
- Integrated conveyor for scrap removal
- Standard working area from 3 x 1.5 m to 6 x 3 m
- Capacitive height control
- Lower operational costs and more efficient than a CO2 Laser
25% OFF
All CNC laser cutting machines
Technical Specifications
| Working length | 1000 – 12000 mm |
| Working width | 1500 – 3000 mm |
| Max. number of tool stations | 2 |
| Max. thickness of material cut by laser | according to laser source |
| Max laser source power | 15 Kw* |
| Max. thickness of material cut by plasma | according to plasma source |
| Bevel cutting | yes (see accessories) |
| Pipe cutting | Ø 30 – 500 mm |
| Drilling and tapping | inquire individually |
| Positioning speed | max 183 m/min |
| Bidirectional repeatability | 0.03 mm/m |
