Powerful 8kW Laser Cutter
“This is not a toy; it’s the real McCoy”
The MSF Compact is a highly-efficient and compact fibre laser cutting machine, designed for customers with limited space. Despite its small size, this machine incorporates cutting-edge technology and features found in our larger MSF series machines.
The space-efficient design has a starting footprint, measuring just 2 metres long and 1 metre wide, making it an excellent choice for a fixed or restricted sized area in your production facilities.
Space-Saving – High Precision – Fast Cutting Speed

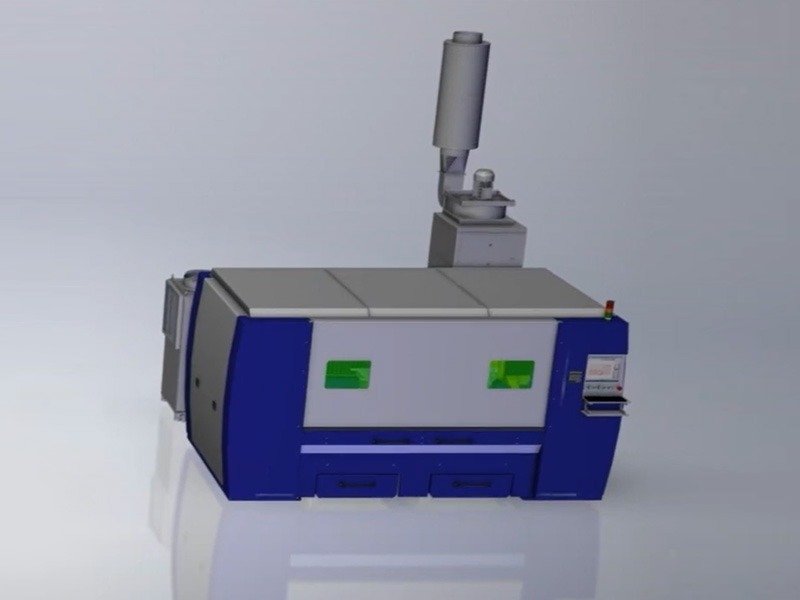

The MFS compact laser cutter is available in three different sizes, each with a small machine footprint.
| Model No. | Cutting Area (W x L) | Loading Tray Open (W x L) |
|---|---|---|
| 1001.20L | 1m x 2m | 3.55m x 4.1m |
| 1251.25L | 1.25m x 2.5m | 4.4m x 4.4m |
| 1501.30L | 1.5m x 32m | 4.4m x 4.9m |
Low Maintenance – Convenient Loading and Unloading
25% OFF
All CNC laser cutting machines
The MSF compact plasma cutter is a serious machine. It is designed for small spaces with sophisticated needs.
The cutting-edge technology of IPG Photonics laser sources, and Thermacut Ex-Trabeam ECO laser head will enable you to revolutionise your cutting operations and unlock new possibilities for your business.
IPG Photonics Laser Sources
Choices of two IPG Photonic laser power source options:
YLR – Roof-mounted for maximum space saving.
YLS – Stand alone unit giving more power.

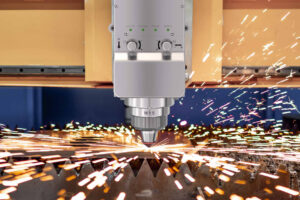

Thermacut Ex-Trabeam ECO Laser Head
Minimise downtime and maximise productivity.
Sets itself apart with exceptional on-site serviceability.
Unique feature allows for convenient maintenance & repairs.
Unbeatable value for your investment!
Prices includes 5.5kW fume extraction, ThermaCut EX-TRABEAM-ECO cutting head and cooling unit.
Experience superior quality without the premium price tag.
Choose the cutting table size and laser power source.
MSF Compact prices; Ask about special discount prices!
Build your fibre laser machine
Options:
Automatic switching of three cutting gases – three inlet gas regulator Hoerbiger (O2, N2 + Air) £1300
Input voltage stabiliser to protect against voltage fluctuation £5100
25% OFF listed MSF Compact prices
Limited Time: Special Discounts Available
Contact us for more information about the
Compact laser cutting machine for small spaces
0114 248 7575MSF Compact: Comprehensive Insights
More Production for your £££s
Small but powerfully efficient, the compact fibre laser cutting machine provides high production levels in less space! Contact info@cityplasma.co.uk for more information about this amazing piece of machinary.
High Precision Laser Cutting
Despite its diminutive size, the MSF Compact is engineered to deliver high-precision cutting. It is capable of producing intricate and accurate parts with a single cutting head. This precision ensures that your finished products meet strict quality standards.
Fast Cutting Speed
The fast cutting speed of this compact laser cutter is powered by the market leading IPG Laser Source with up to 8Kw cutting power. Helping you with improved productivity and reduced production time.
Very Low Maintenace
The MSF Compact is designed for reliability and longevity. It boasts extremely low maintenance requirements, reducing downtime and operating costs. This ensures that your production process remains smooth and cost-effective.
Convenient Loading
To facilitate easy loading and unloading of materials, the machine is equipped with a fully retractable single grate system. This system is mounted on linear guides, allowing it to be pulled from the cab to the front of the machine. This feature enhances the overall user experience and efficiency.
Single Cutting Head
The MSF Compact is equipped with a single cutting head, simplifying operation and maintenance. This configuration is ideal for applications where a single head can achieve the desired cutting results.
- Powerful fibre laser cutting system
- Completely integrated laser cutting solution
- High motion dynamics and positioning accuracy
- Powerful and user-friendly PC-based CNC control system iMSNC®
- Meet contemporary safety and environmental standards
- Automatic plate alignment
- Manually extractable cutting table
- Scrap drawers located for easy access
- Standard working area from 1 x 2 m to 1.5 x 3 m
- Capacitive height control
- More efficient than a CO2 Laser
Technical specifciations
| Machine sizes | 1 x 2m, 1.25 x 2.5m, 1.5 x 3m |
| Max. number of tool stations | 1 – 2D cutting |
| Max. thickness of material | According to the laser source |
| Laser source power | 1kW to 8kW |
| Bevel cutting | Check out the MSF Pro and MSF Max) |
| Pipe cutting | |
| Drilling and tapping | |
| Positioning speed | Max 183 m/min |
| Bidirectional repeatability | 0.03 mm/m |
Configuration includes:
- High dynamic MSF Compact steel-structure machine body, Low-seated double side driven gantry (rack-pinion system)
- High-efficient fume extraction table with electro-pneumatic zone opening (sectional) & Manual waste tray (for scrap material)
- Protection safety cabin (class 1) with electrically lifted guilotine doors, Manually retractable table (1 palette) for loading & unloading of material, Manual lubrication of guidelines (via access free lubrication points)
- Fiber laser source, Automatic laser head Thermacut EX-TRABEAM Eco, Cooling unit, Filter unit with remote control
- Laser pointer for manual starting point setup, LU2K unit (Nozzle Cleaning & Calibration of capacitive sensor), Monitoring of nozzle camera protection glass
- Power distributor for machine system (Electrobox), Maintenance set for laser head and Consumable starting set
- Integrated MMI operation panel with 17″ touchscreen monitor, iMSNC control system for intuitive machine operation
- Integrated database with cutting parameters, Easy operating and maintenance planning tools, Diagnostic SW tools with access via Remote diagnostics system (via TeamViewer)
- In-house developed CAM SW package: AsperWin Basic, AsperWin Nesting (incl. Nesting Optimizer) for 1 machine PC + 1 office PC license
- Installation & Comissioning, Training and Test cutting (by laser specialist)
- Machine transport costs (1pcs container), Travel and Accommodation costs of the technicians.
- 3 Years warranty on machine and laser source, 1 year on laser head and feed cable.
Customer testimonials
Exceptional cutting quality
A specialist manufacturer renowned for crafting innovative communication and building security solutions, has made a strategic investment in the MSF Compact laser cutting machine. In their pursuit of expanding their machinery arsenal, Lippert meticulously explored a range of cutting-edge technologies. After witnessing the remarkable capabilities of the MSF Compact firsthand, the decision was crystal clear.
This cutting-edge machine features a 2D cutting head and working surface spanning 1.5m x 3m, rendering it the quintessential choice for precision cutting of small to medium-sized batches across an array of materials, including mild steel, stainless steel, aluminum, and brass. What truly tipped the scales in favor of the MSF Compact were its unparalleled flexibility and exceptional cutting quality.
Perfect for prototypes and serial production

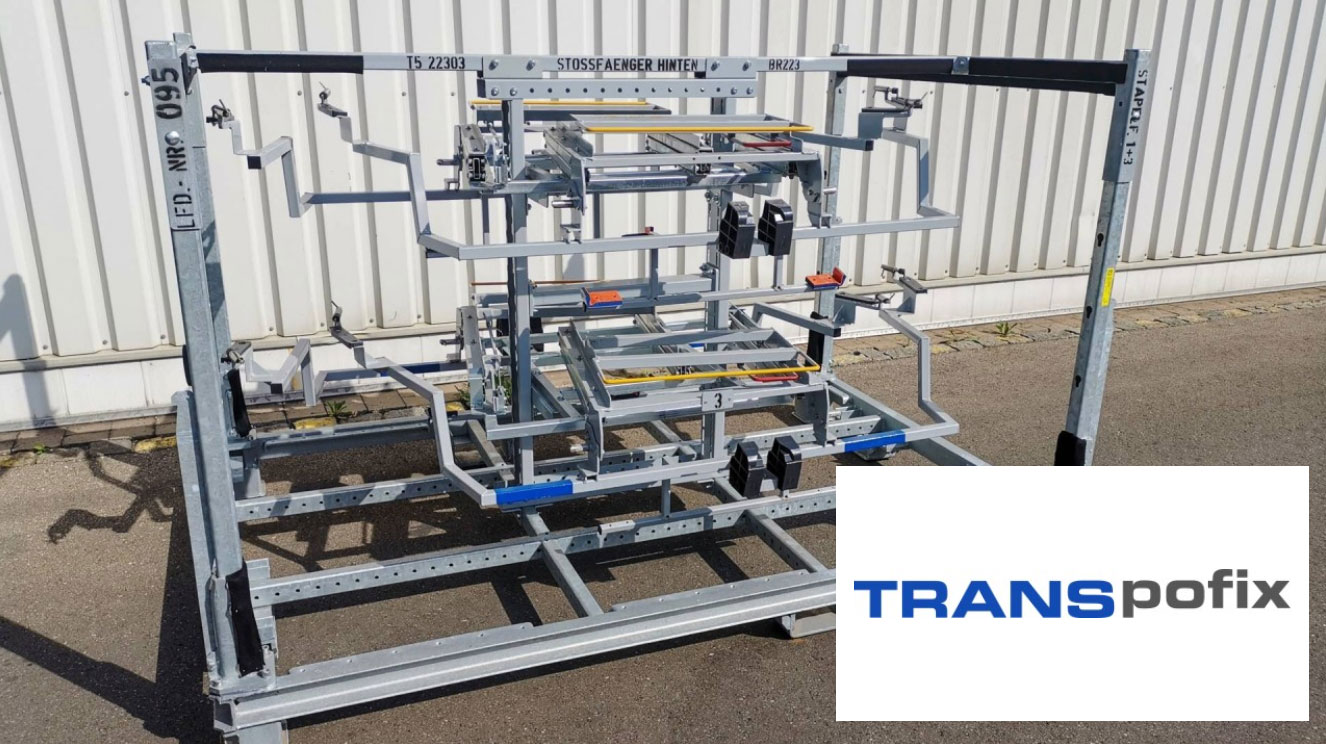

A prominent leader in factory transport systems, has shifted from relying on sub-contracting services to embracing the cutting-edge MSF Compact laser cutting system. This strategic move is underpinned by a commitment to flexibility in prototyping and a relentless drive to boost productivity.
The decision to embrace laser technology was fueled by a quest for quicker response times, reduced external dependencies, and an elevated standard of cutting precision. Since its successful deployment, the MSF Compact has played a pivotal role in both prototyping and serial production, resulting in shortened delivery timelines and heightened operational efficiency throughout their manufacturing processes.
Remarkable precision

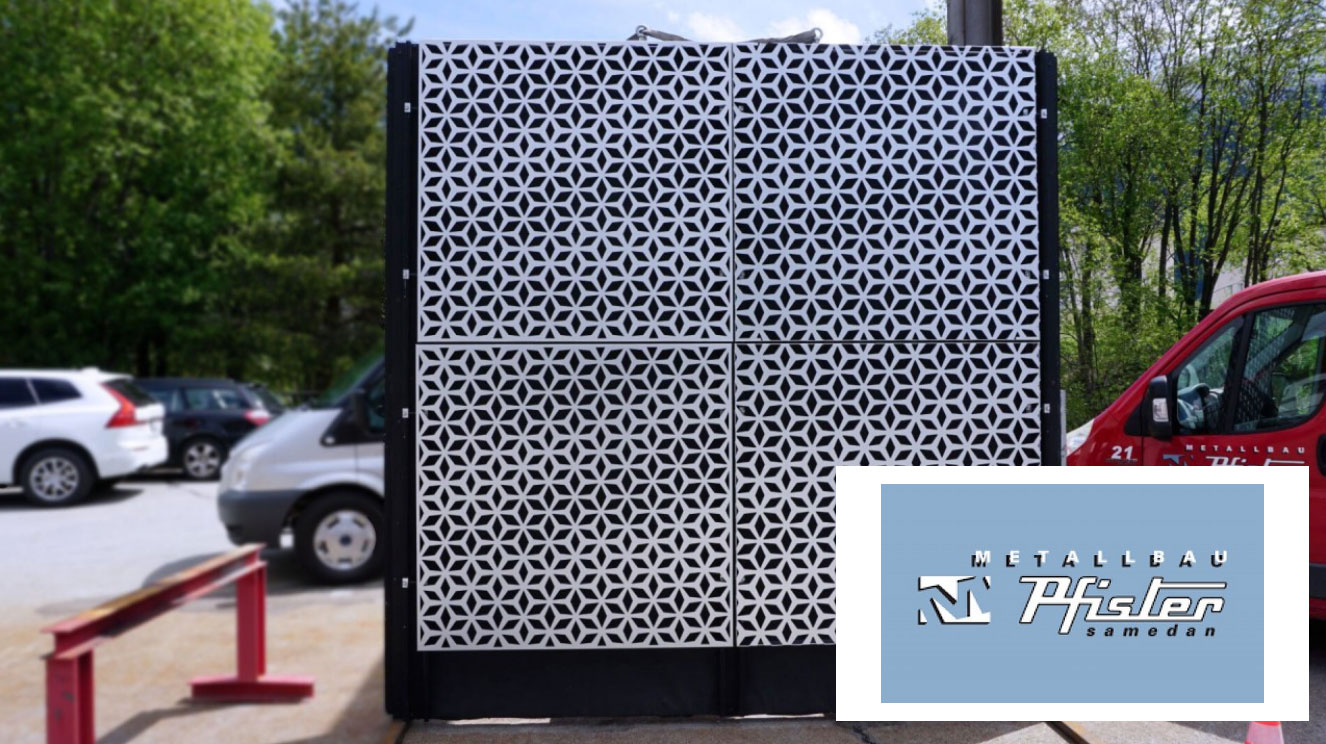

Renowned for its expertise in metal structures and locksmith services, this company has discovered the ultimate solution in the form of the MSF Compact and this compact 2D cutting marvel has far surpassed their initial expectations.
The decision to invest in the MSF Compact stemmed from the escalating costs associated with sub-contract laser cutting services and the constraints posed by their existing plasma cutting machine. The transition to this state-of-the-art fibre laser machine was seamlessly executed, leaving the management and staff thoroughly impressed. They were particularly taken with the machine’s remarkable precision and its ability to seamlessly integrate into their limited workspace.
